19B -41B high speed cold heading machine

8B -17B high speed cold heading machine

+
  • 7676a34c-bd26-4bbc-9efe-eaecf04dc36d(1).jpg

BY-NF 27B-6S-60L

A key phone 400- 848-2225

产品分类：

8B-17B high speed cold heading machine

Bearing-speed cold

BY-NF 27B-6S-60L

Copper intensive six-station extension Forming Machine for machining diameter less than 6mm, 60mm length up parts production capacity of up to 65 per minute.BY-NF 27B-6S-60L whole machine bearings from the world's first brand of Swiss imports of SKF, a strong guarantee the accuracy Boyu cold forging machine production, great continuation of the Boyu cold forging machine life.
Key Features: Easy operation
Production efficiency is very efficient (65 / min)

Precise lateral transfer complex workpiece geometries
Reliable transport of the work, the work extracted gently
Material savings

More important parameters

Modulus

6

Maximum cutting diameter (MAX) (mm)

26

Maximum cutting length (MAX) (mm)

60

After care set length (mm)

140

Mother die center distance (mm)

100

Create pressure (TON)

270

Maximum capacity (PCS / MIN)

65

Main Motor (4/8POLE) (Kw)

75

Pump motor (Kw)

1.5

Oil consumption (GALLON)

420

Machine weight (TON)

28

Mechanical Dimensions L*W*H(M)

5.55*2.75*2.30

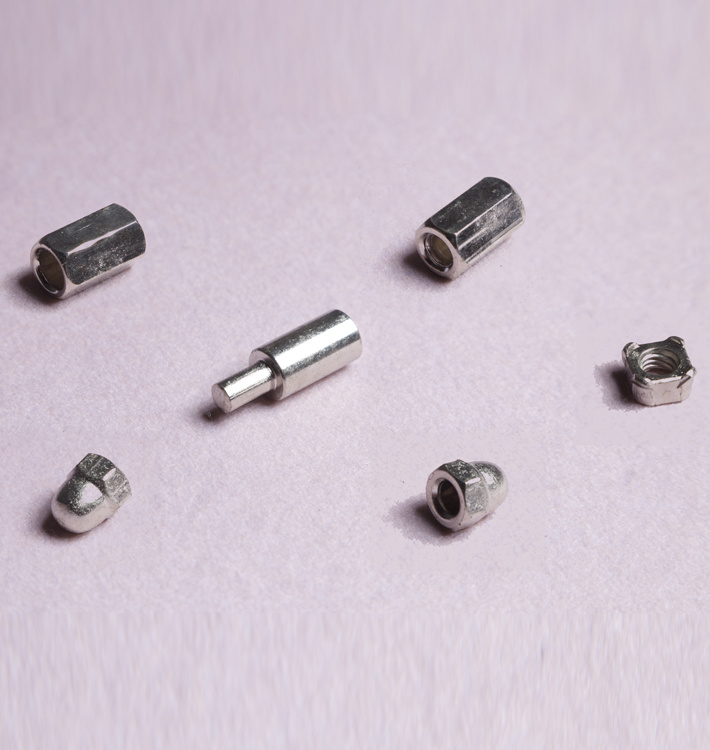

Possible Uses
